Parallel groove clamps
What is a parallel groove clamp? Parallel Groove Clamps are designed to connect two parallel conductors in order to do a derivation of a secondary conductor or to close a loop of one conductor to fit it on an insulator. These connectors are composed of two parts, an upper body and lower body.
Shanghai Powery Industries Co., Ltd.has all kinds of parallel groove clamps. parallel groove clamps are made of high strength corrosion resistant alloy and copper and are widely used for aerial taps, parallel groove clamps are designed to be durable.
The quality parallel groove clamps is used for the connection of aluminum strands or steel core aluminum strands with small and medium sections and steel strands of overhead lightning wires without tension, as well as for jumper connection of non-linear towers.
Parallel groove clamps is designed to connect two conductors in parallel. This type of connector is manufactured with all contact surface radii specific to conductor sizes to maximize contact surface area and provide a superior installed fit. Can also be used on Transmission OHL connections (jumper connections). Additional sizes are available upon request.
SPECIFICATION
| Name |
TYPE |
Conductor(mm²) |
| Specific form aluminum paralled groove clamp | JBL-10-70 | 10 |
| JBL-16-120A | 16-120 | |
| JBL-16-120B | ||
| JBL-50-240A | 50-240 | |
| JBL-50-240B | ||
| JBL-120-400A | 120-400 | |
| JBL-120-400B | ||
| Specific from copper paralled groove clamp | JBT-16-120 | 16-120 |
| JBT-50-240 | 50-240 | |
| Specific from copper-aluminum parallel groove clamp | JB-TL-10-70 | 10-70 |
| JB-TL-16-120 | 16-120 | |
| JB-TL-50-240 | 50-240 |
Note:A-two bolts， B-three bolts
APG Clamp(Two bolts)
| Modle | Applicable conductor section(mm²) | Applicable conductor dia. | |
| AL | ACSR | AL | |
| APG-B1 | 6-35 | 16/2.5-35/6 | 2.7-8.1 |
| APG-B2 | 16/70 | 16/2.5-70/12 | 5.1-11.7 |
| APG-B3 | 16-150 | 16/2.5-120/20 | 5.1-15.7 |
| APG-B4 | 16-120 | 16/2.5-95/15 | 5.1-14.0 |
| APG-B5 | 25-185 | 25/4-185/30 | 6.3-17.5 |
Overview
|
Place of Origin: Shanghai, China |
Brand Name: Spowery |
|
Material: Copper,Aluminum,Aluminum Alloy |
Certification: ISO9001 |
| Model Number: JBL、JBT、JB-TL | Export: All over the world |
| OEM: Accept |
Lead Time
|
Quantity(Pieces) |
1 - 5000 |
>5000 |
|
Est. Time(days) |
25 |
To be negotiated |

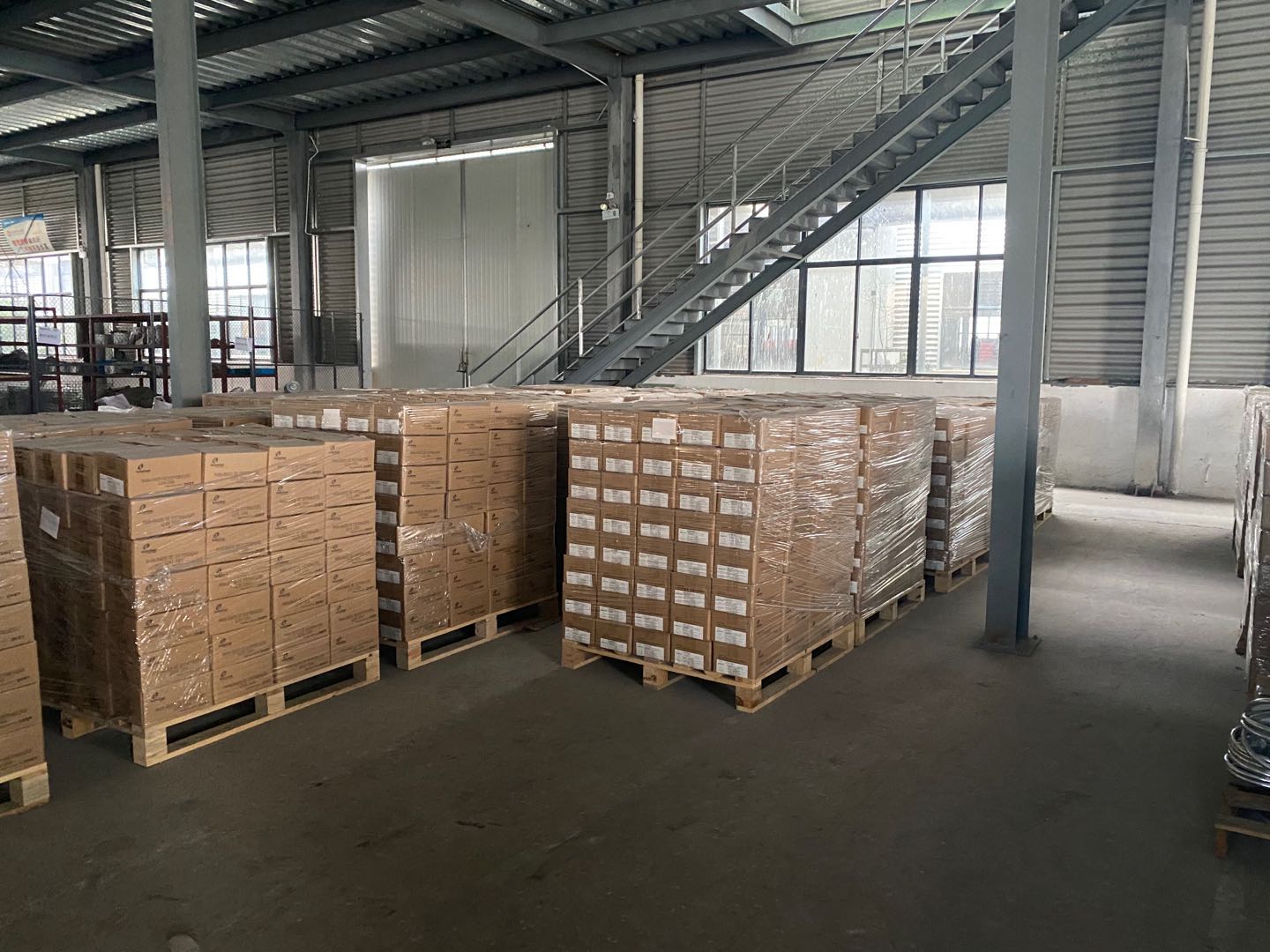

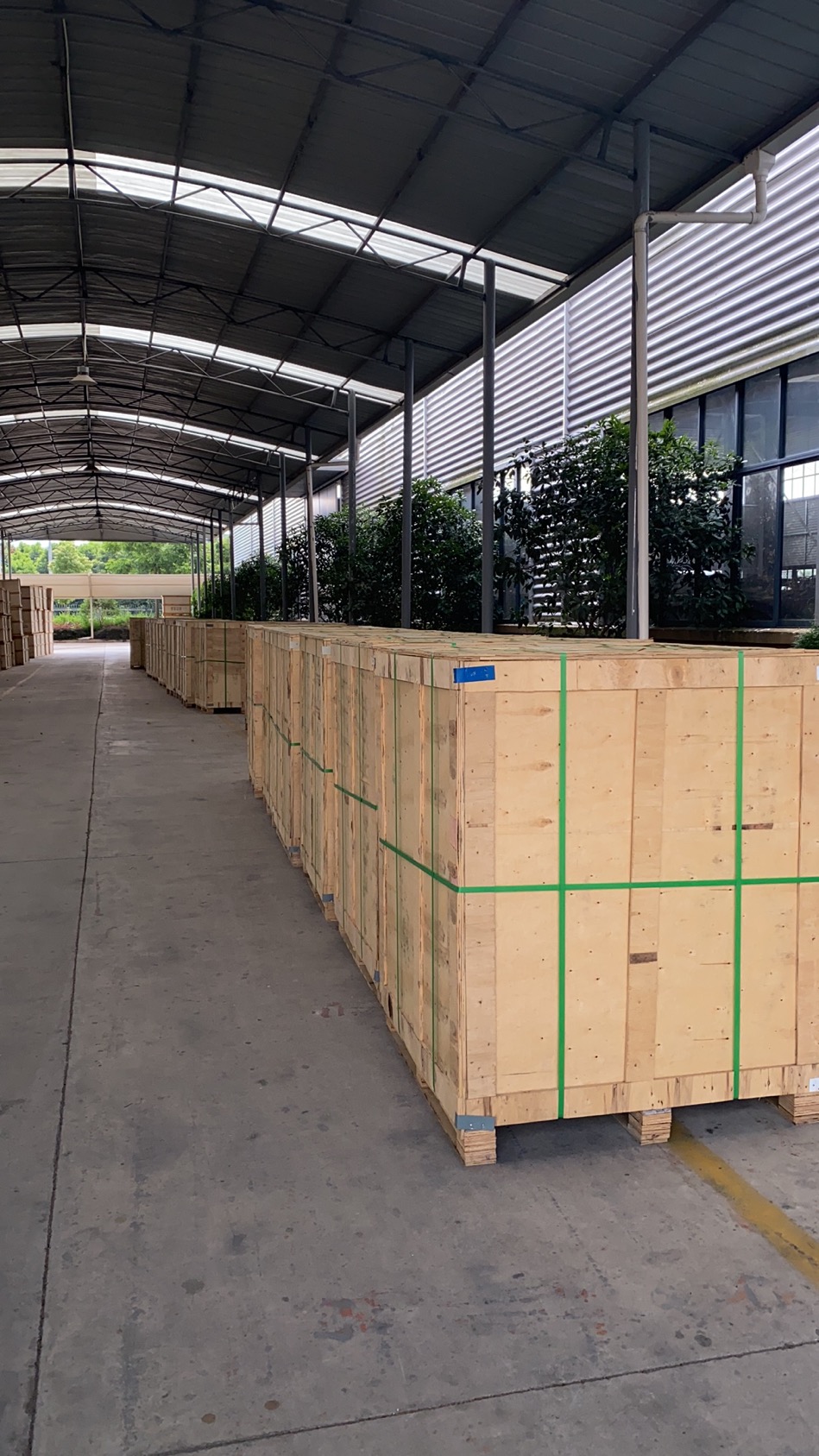

Packaging & Delivery
Packaging Details Standard Exported Packing Or As Your Request
Port：shanghai
Picture Example
